AMS対応ピーニングショット
AMS - Aerospace Material Specifications (航空宇宙関係材料に関する規格)
■AMS 2431/1D (Peening media (ASR), Regular hardness (45 to 52HRC)
ピーニング用投射材(ASR)/硬さ=45-52HRC
(AMS 2431/2D (Peening media (ASH), Regular hardness (55 to 62HRC) )
ピーニング用投射材(ASH)/硬さ=55-62HRC
化学成分
chemical compositions |
炭素 carbon |
|
0.8-1.2 % |
マンガン manganese |
ASR-70 ~ ASR130 |
0.35-1.2 |
ASR-170 & ASR-190 |
0.5-1.2 |
ASR-230 ~ and up |
0.6-1.2 |
ケイ素 silicon |
|
0.4-1.5 |
硫黄 sulfur |
|
0.050 max. |
リン phosphorus |
|
0.050 max. |
|
比重
specific gravity |
7g/cm3 max. |

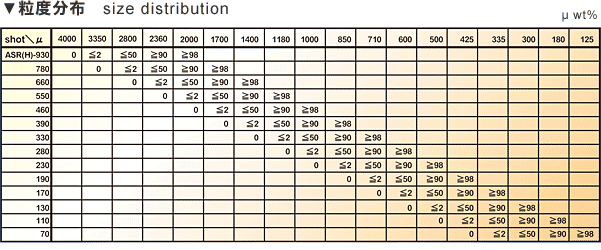

※ AMS対応の粒度分布等を示しておりますが、その他の規格・ご要望も承ります
We will be ready to respond to other specifications, requests, etc. besides AMS described above.
- ショットピーニング管理キット「WA PACK」
- 弊社テストセンターにて、ピーニング、ブラスト各種テストを承ります。お気軽にご相談ください。
Our Test Center is please to take on various tests.

- 第10回(2008年)に引き続き、第11回ショットピーニング国際会議(2011年9月)
にて、弊社は論文発表をいたしました。
We presented a thesis at the 10th (in 2008) and 11th International
Conference on Shot Peening (ICSP11) in Sep. 2011.
▼AMS対応ピーニングショットの仕様など詳細は下記PDFファイルをご覧下さい。
